MOTOGADGET CHRONOCLASSIC SPEEDO DARK EDITION

MOTOGADGET CHRONOCLASSIC SPEEDO DARK EDITION

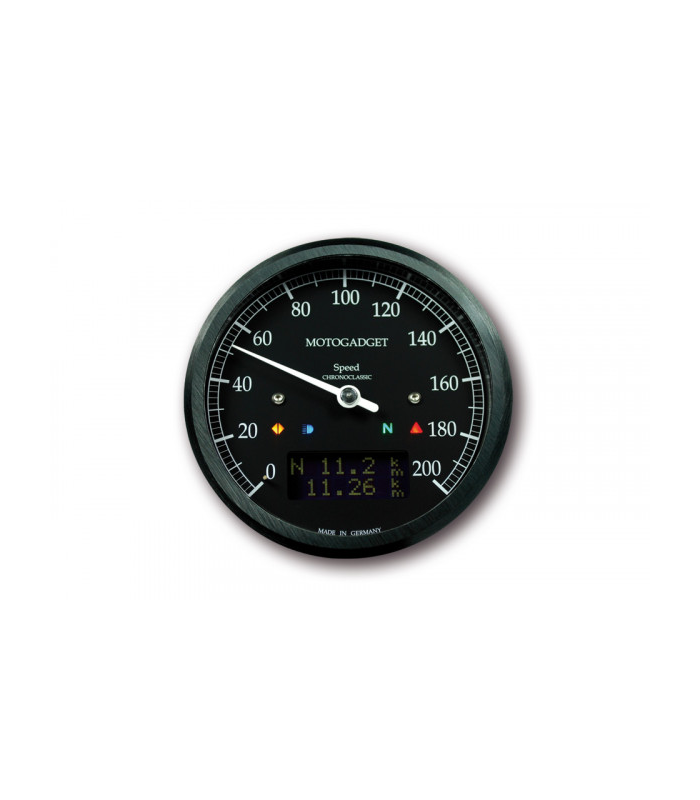

motogadget Chronoclassic Speedo, black, Dark Edition LCD, with German ABE.

The motoscope classic speedo from motogadget is an analogue speedometer with many additional digital features in a classic round casing. A black dial and a red indicator driven by a precision stepper motor comprise the analogue rev counter. A LC display and four indicator LEDs indicate the additional features accurately and reliably.

This compact instrument creates new possibilities in vehicle design.

The design goes well with every type of mod or original machine - regardless if real classic, youngtimer, custom or sports bike.

The motoscope classic is equally suited for sports or kit cars. High end materials, assembly by hand and our scrupulous quality control provide the highest possible quality in functionality and looks.

Specifications and Features

- Mounting diameter: 80 mm

- Total diameter (bezel): 85 mm

- Depth without cable fitting: 34 mm

- Weight: approx. 230 g- Mount: 3 x M4 threaded hole

- Power consumption, operating: approx. 200 mA (load dependent)

- Power consumption, standby: 0 mA

- Operating voltage: 9 V - 18 V

- Operating temperature: -20 +80 °C

Feature Speedometer (analogue/indicator): 0 200 km/h or mi/h, on top on LCDTrip meter: 999 km or mi max.

Total distance (adjustable): 250000 km or mi max.

Journey time display: 0 99:99:99 h/min/s

Rev counter (on LCD): 0 20000 rpmrpm threshold warning, adjustable (int. LED and ext. gear shift flash): 0 20000 rpm

On-board voltage display: 9 V 18 V

NEW! Low voltage warning: LED blinks if on-board voltage drops below approx. 11V

- replacement for battery charge status lightAir temperature

* (optional instead of water temp.): -20 - 80 °C / -4 - 176 °F with high-/low warning

Water temperature* (optional instead of air temp.): 40 - 120 °C / 104 - 248 °F with high-/low warning

Oil temperature*: 40 - 160 °C / 104 - 320 °F with high-/low warning

Oil pressure*: 0 - 8 bar / 0 - 116 psi with high-/low warning

Timekeeping 0 - 100 km/h or 0 - 60 mi/h: 0.0 99.9 s

Current acceleration: (-20.0) 20.0 m/s2

Average speed: 0 350 km/h or mi/h

Max. speed: 0 350 km/h or mi/hMax. rpm: 0 20.000 rpm

Max. positive acceleration: 0 20.0 m/s2

Max. negative acceleration: 0 (-20.0) m/s2

Gear indicator: N, gear 1 - 6

Green indicator LED: Neutral (N)Yellow indicator LED: Turn signal left, right

Blue indicator LED: High beam

Red indicator LED: Different warning functions external (e. g. oil pressure switch), internal (rpm, temperature, pressure, voltage)Output external gear shift flash light Switched power 1.4 A max.
