FARO DELANTERO LED HIGHSIDER BRITISH-STYLE TIPO 4 (MONTAJE LATERAL)

HIGHSIDER HIGHSIDER 7 INCH LED HEADLIGHT BRITISH-STYLE TYPE 4, BLACK

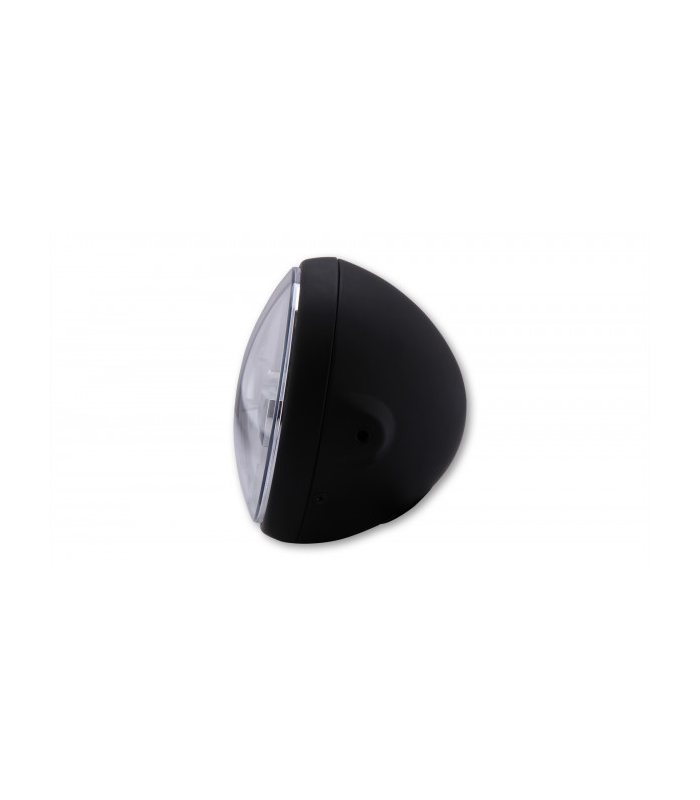

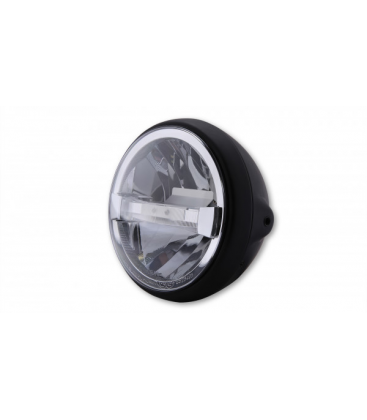

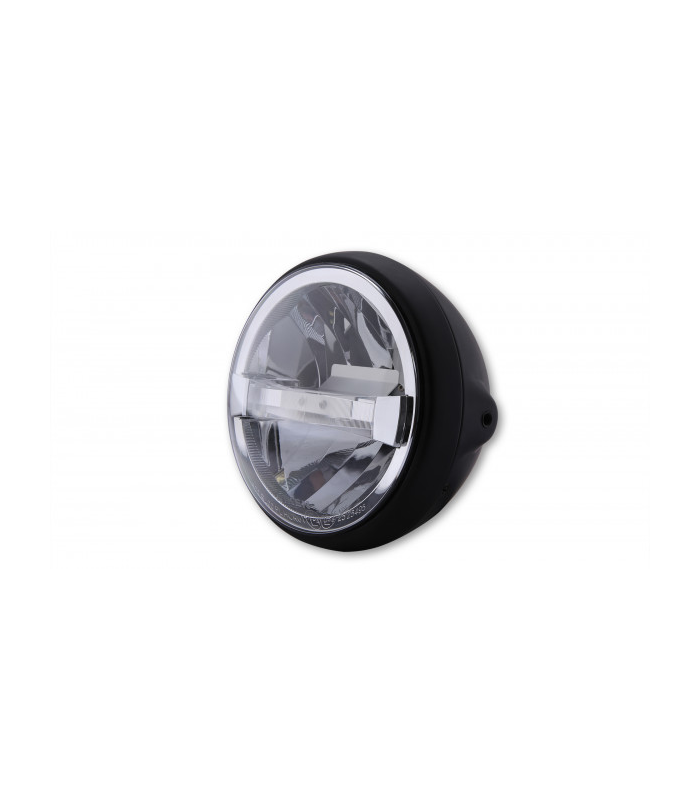

HIGHSIDER 7 inch LED headlight BRITISH-STYLE TYPE 4Puristic-shaped headlight comes in a chromed metal housing for side mount. This plain design is perfect matching to Classic Bikes, Roadsters and Custom Bikes. Inside a chromed reflector with a clear lens is equipped with high-beam, low-beam, parking light and daytime running light (DRL). DRL and parking light are installed in a centre strip and ensure a great light image - low-beam emits above the strip, high-beam below. Reflector emits an asymmetric light flux - approved only for right-hand driving, E-marked.Our highlights give your bike its unique style! The exceptional design and the perfect technology of the HIGHSIDER headlight series makes you absolutely to a highlight!Dimensions:Housing diameter (also hole spacing): 190 mmDiameter headlight insert: 178 mm Housing depth: 140 mmDistance mounting holes - Housing front: approx. 47 mmDistance mounting holes - Housing tail: approx. 80 mm Side mount with M8 mounting boltCable assignment:Black = ground Blue = low beam, current consumption at 12 volt: 1,8A, 22WYellow = high beam, current consumption at 12 volt:1,3A, 13WDRL:Black = groundRed = daytime running light, current consumption at 12 volt: 1,2A, 14WWhite = parking light, current consumption at 12 volt: 0,2A, 2,4WDelivery contents: 1 piece incl. 3-Pin connectorOptionally available:Replacement reflector: LED main headlight insert TYPE 4, chrome, Item No: 226-018 Notes:• Asymmetric reflector - approved only for right-hand driving.• Customers have to install including 3-Pin connector after mounting reflectorView to plug terminalsHigh beam (yellow) = right sideLow beam (blue) = on topGround (black) = left side
