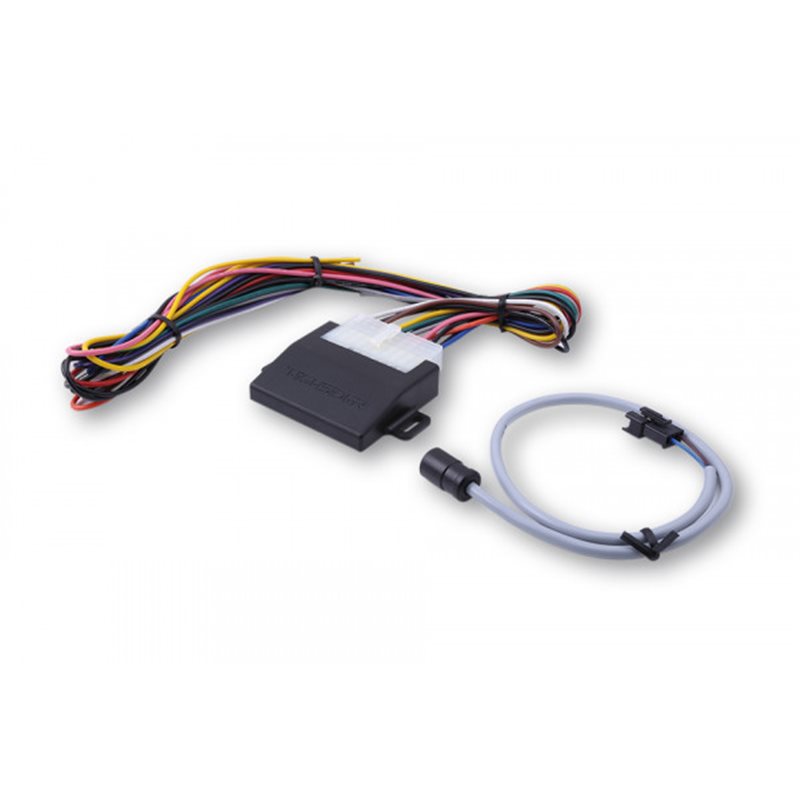

HIGHSIDER E-BOX TYPE 1, FOR DRL CIRCUIT VIA LIGHT SENSOR

HIGHSIDER E-BOX TYPE 1, FOR DRL CIRCUIT VIA LIGHT SENSOR

HIGHSIDER PW E-BOX TYPE 1, for DRL circuit via light sensor.For automatic switching between daytime running light and dipped beam.The HIGHSIDER PW E-BOX TYPE 1 recognizes when it gets dark or bright, and then automatically turns on the low beam and simultaneously turns off the daytime running lights (or vice versa).Additionally equipped (optional switchable) is the so-called function. This makes it possible, the daytime running lights after switching off the motorcycle in the dark for another 30 Sec. to light up actively.There is no need for a switch.An installation tutorial can be found on our youtube channel: highsider tips and tricks.Dimensions:Height: 16 mmWidth: 56.5 mmWidth with fastening straps: 75 mmLength: 48 mmFastening straps: 3 mm x 11 mm (slot)Weight: 0.046 kgCable length: 400Cable length light sensor: 600 mm (total)Connections:Purple / black cable = high beam INYellow / green cable = parking light INBlack cable = ground IN (-)Red cable = supply voltage IN (+)Blue cable = dipped beam OUTBlack cable = ground OUT (-)Pink cable = parking light OUTOrange cable = dipped beam INGray cable = programming cableGreen cable = high beam OUTBrown cable = daytime running light (TFL)Black cable = ground OUT (-)White cable = TFL indicator light OUT4-pin connector for the light sensorDelivery:1 x HIGHSIDER PW E-BOX TYPE 11 x cable set1 x light sensor1x manual 208-200A
