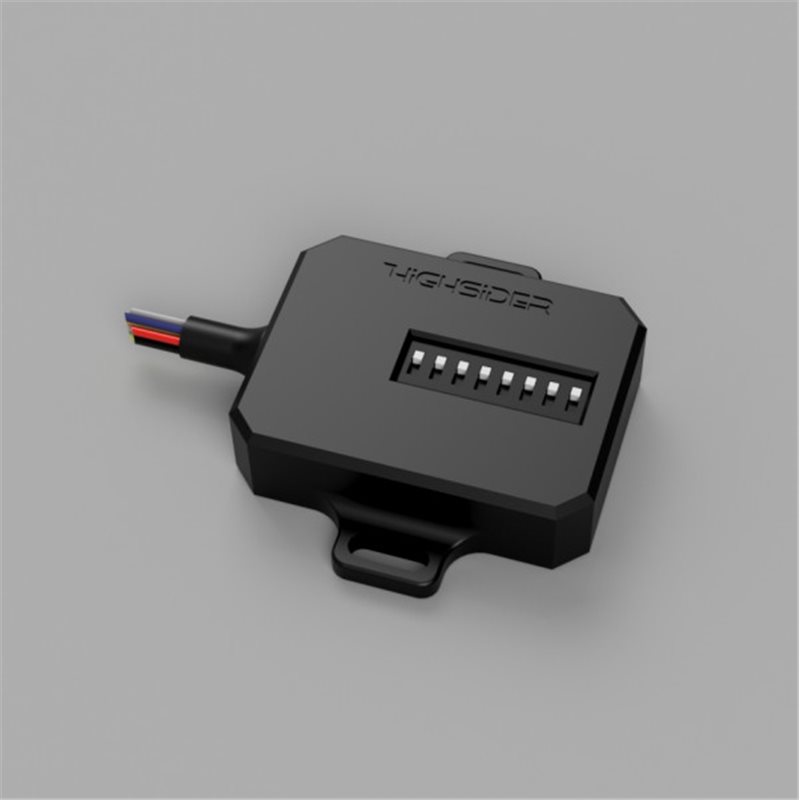

HIGHSIDER CAN-BUS resistor CBW1 with DIP-switch.Our newly developed HIGHSIDER CAN-BUS resistor CBW1 fits most vehicles that have a CAN-BUS system.The CBW1 resistor provides a required electrical load for your vehicle, which, if the dip switches are set correctly, will result in no flashing of the accessory flashers in the cockpit.In addition, a reliability is given. This means:If the accessory indicators fail due to an electronic fault, an error message is immediately displayed in the cockpit.Up to 2 channels can be operated, such as turn signals at the rear left and turn signals at the rear right.If 2 pairs of indicators need to be changed,also 2 CBW1 needed to be used. Which requirements should be met in order to use the CBW1 on the motorbike: Either:The motorbike was originally produced with LED indicators.Or:The motorbike has a CAN-BUS SystemIf these requirements are not met, the CBW1 unit will not function (!) In this case, we recommend the following resistances: For indicators with 21 Watt 6,8 Ohm partnumber 207-025or10 Ohm partnumber 207-028For indicators with 10 Watt27 Ohm partnumber 207-020The following resistance values ??can be set on the CBW1:150 ohms170 ohms240 ohms300 ohms400 ohms600 ohms1200 ohmsDimensions:Height = 11mmWidth = 31mm (without straps)Width = 46mm (with tabs)Length = 40mmCable length = 200mm with pinsConnections:Yellow = input channel 1 (+)Orange = output channel 1 (+)Blue = input channel 2 (+)Red = output channel 2 (+)Gray = input mass (-)Black = output ground (-)Scope of delivery: 1 pieceHints:• Up to 2 channels can be operated.• The connection is explained precisely in the mounting instructions!
