ÓPTICA DE FARO DELANTERO LED HIGHSIDER TIPO 4

HIGHSIDER LED MAIN HEADLIGHT INSERT TYPE 4

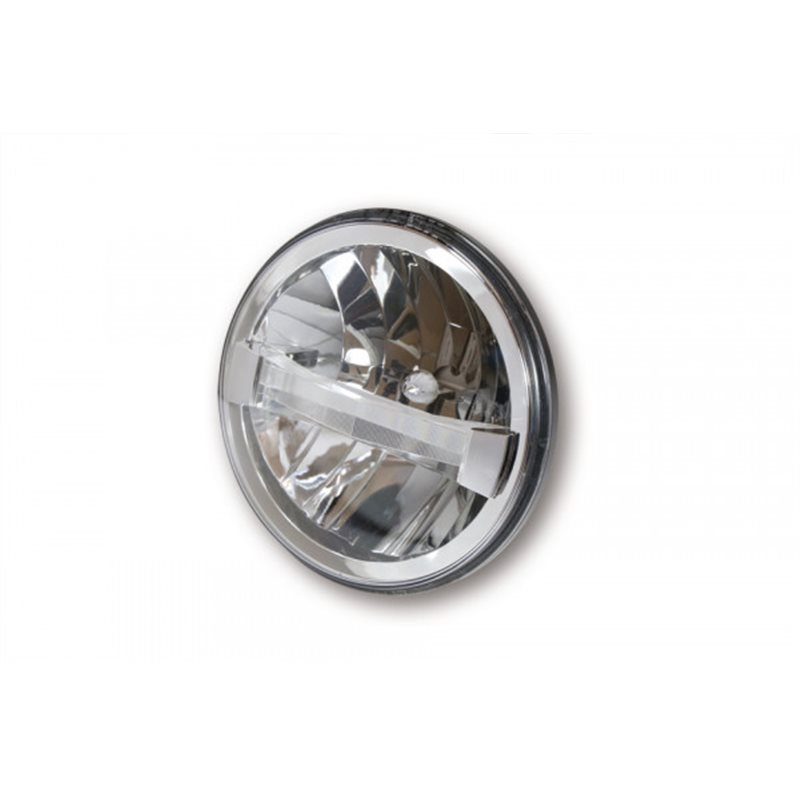

HIGHSIDER LED main headlight insert TYPE 4Round, chromed insert with a clear lens is equipped with high-beam, low-beam, parking light and daytime running light (DRL). DRL and parking light are installed in a centre strip and ensure a great light image - low-beam emits above the strip, high-beam below. Reflector emits an asymmetric light flux - approved only for right-hand driving, E-marked.Our highlights give your bike its unique style! The exceptional design and the perfect technology of the HIGHSIDER headlight series makes you absolutely to a highlight!Dimensions:Diameter A = 177 mmDiameter GA = 168 mmDiameter I = 160 mmT = 61 mmR = 10 mmCable assignment:Black = ground Blue = low beam, current consumption at 12 volt: 1,8A, 22WYellow = high beam, current consumption at 12 volt:1,3A, 13WDRL:Black = groundRed = daytime running light, current consumption at 12 volt: 1,2A, 14WWhite = parking light, current consumption at 12 volt: 0,2A, 2,4WDelivery contents: 1 pieceOptionally available:• 7 inch LED headlight RENO TYPE 4, chrome, Item No. 223-152•7 inch LED headlight HD-STYLE TYPE 4, chrome, Item No. 223-154• 7 inch LED headlight BRITISH STYLE 4, chrome, Item No. 223-156Low beam: on topHigh beam: belowNotes:• Asymmetric reflector - approved only for right-hand driving.• Customers have to install including 3-Pin connector after mounting reflectorView to plug terminalsHigh beam (yellow) = right sideLow beam (blue) = on topGround (black) = left side
